Europe – North America Soil Geographic Information
for Pesticide
Studies (ENASGIPS)
To Download ENASGIPS Version 3.0 Add-in for ArcMap 10:
- ENASGIPSv3.0_AddinInstallation.exe (23 MB) (updated 1/17/2016)
- ENASGIPSV3.0_Arc10x_User_Guide.pdf (1.7 MB)
- ENASGIPS_DemoVideo.zip ( WMV format ) (71 MB)
To install ENASGIPS Version 3.0 Addin:
Run ENASGIPSv3.0_AddinInstallation.exe. This installer will add the Addin files to your system.
For Single User Installation of the Add-in: The default location will install the Add-in for you, as a user on this computer. Other users will not have the Add-in available.The add-in will be installed here:
- *Your User Documents Folder*\ArcGIS\Addins\
For All Users Installation of the Add-in: If you wish to install the Add-in for all users on this computer, change the install location to one of these locations, depending on the version of ArcGIS you have installed:
- C:\Program Files (x86)\ArcGIS\Desktop10.1\Bin\Addins
- C:\Program Files (x86)\ArcGIS\Desktop10.2\Bin\Addins
If you have installed previous versions of ENASGIPS add-in installed in the same folder, the installation software will delete previous installations. If you have previous installations of the Add-in elsewhere, this may cause problems running the latest version, and you will need to delete all copies of previous Addins. Delete any of these files:
- ENASGIPS*.dll
- Enasgips*.esriaddin
- ENASGIPS*.pbd
These files may be located in either of these directories
- *Your User Documents Folder*\ArcGIS\Addins\Desktop10.1
- C:\Program Files (x86)\ArcGIS\Desktop10.0\Bin\Addins
Installing the ENASGIPS Database and documents:
The ENASGIPSWOE.gdb file geodatabase (2015) provides all the data and associated documents necessary for the ENASGIPS 3.0 or ENASGIPS 4.0 applications. If you are upgrading from the ENASGIPS 3.0 to ENASGIPS 4.0 application you do not need to reinstall the database and associated documents. If you have not installed the geodatabase and associated files, see instructions here.
Starting ENASGIPS 3.O

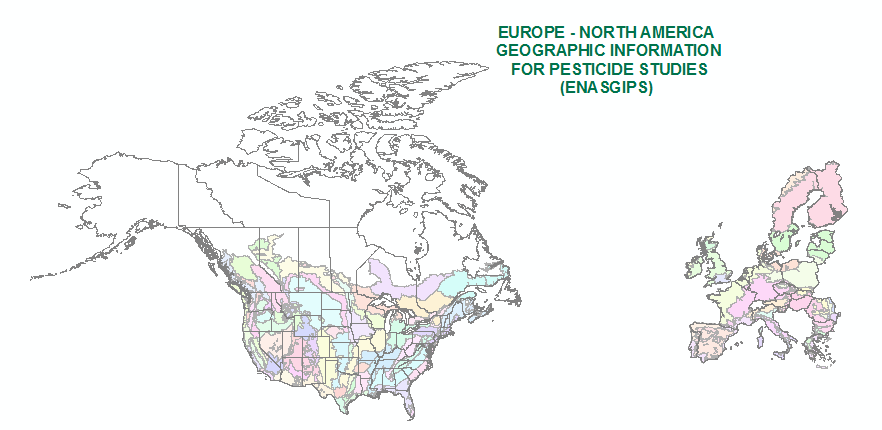

Double click on ArcMap document file ( ENASGIPSV3.0_Arc10_2.mxd) in your ENASGIPS database install folder, to open the project within ArcMap.
